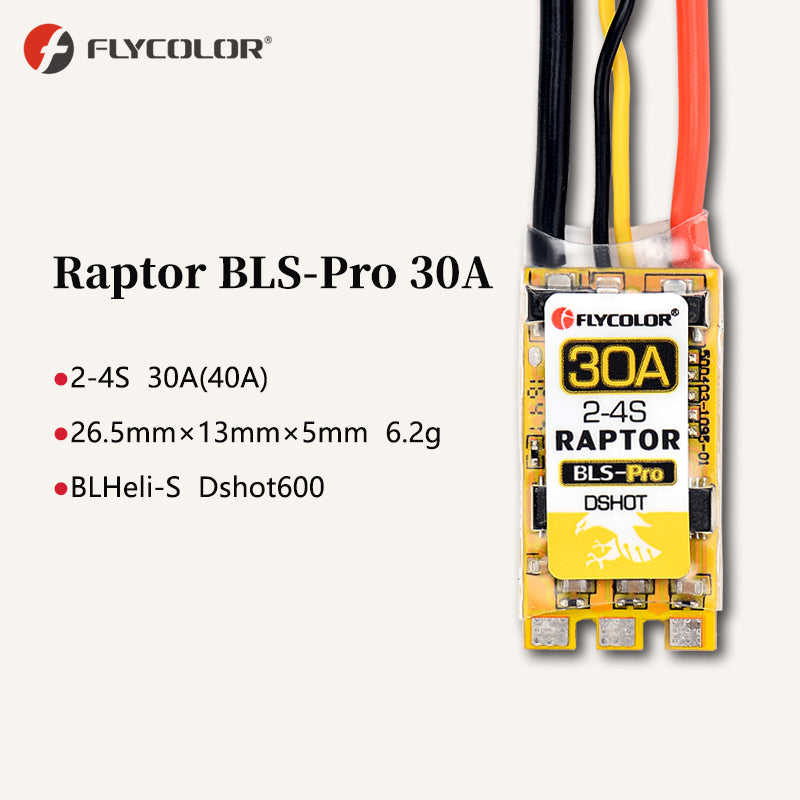

Flycolor Raptor BLS Pro BLHeli-S 30A Plastic Brushless ESC DSHOT 2-4S for FPV Racing Drone RC Multicopter

Specifications:
Brand: Flycolor
Product Name: 30A ESC
Continuous Current: 30A
Instantaneous Current (10 seconds): 40A
BEC: None
Lithium Battery: 2-4S
Weight: 6.2g
Dimensions: 26.5x13x5mm
Supports BLHeli-s Firmware
Supports Oneshot / Multishot / Dshot Modes
Can detect high KV motors

Features:
1. Uses EFM8BB21F16G MCU, 8-bit C8051 core, supports pipelined programming, maximum operating frequency 50MHz
2. Maximum speed limit of 500k eRPM
3. Dedicated high-frequency driver for smoother start-up

Throttle Noise: The throttle noise performance of this ESC is amazing, far exceeding that of approximately 88% of ESCs on the market. Whether considering benchmark tests or price, it is the best ESC to date. Don't forget that Flycolor has been deeply involved in the ESC market for many years, and its product quality is naturally evident.

To see how these test results are translated into FPV video footage, please click the following link:

Simulating Aggressive Flight Maneuvers
These test results are outstanding; for a long time, you'll rarely see other ESCs achieve such superior performance. The peak voltage we measured was only 28.20V, well below the safe range of 34V. The voltage drop was also less than 9V, which is perfectly acceptable due to its efficient power output. The motor appears to use a Tekko32 ESC, currently a top-of-the-line model.
